Living Room Appliance Control via Programmable IR Remote & Arduino
You know you need one of these!
Why did i make it?
Wanted a convenient way to control multiple living room appliances with a single remote without replacing existing appliances

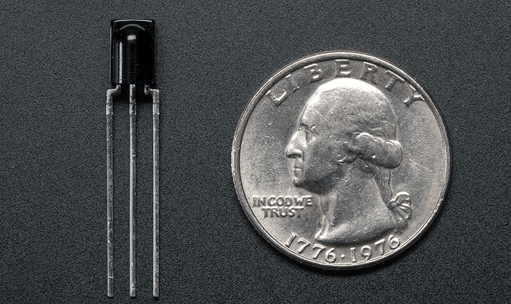

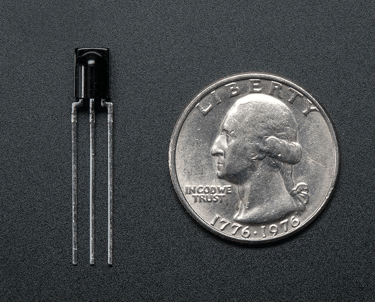

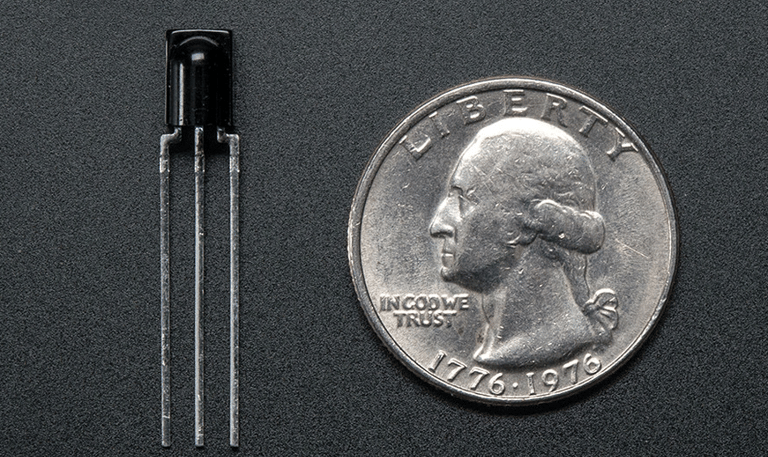

IR (Infrared) Receiver Sensor
An IR receiver module is used to capture signals from a standard handheld remote. It detects the modulated infrared light from the remote and converts it into a digital signal that the Arduino Nano can process to identify which button was pressed.
The Eye!

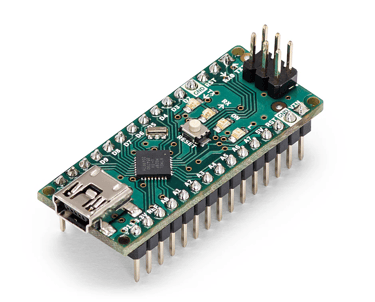

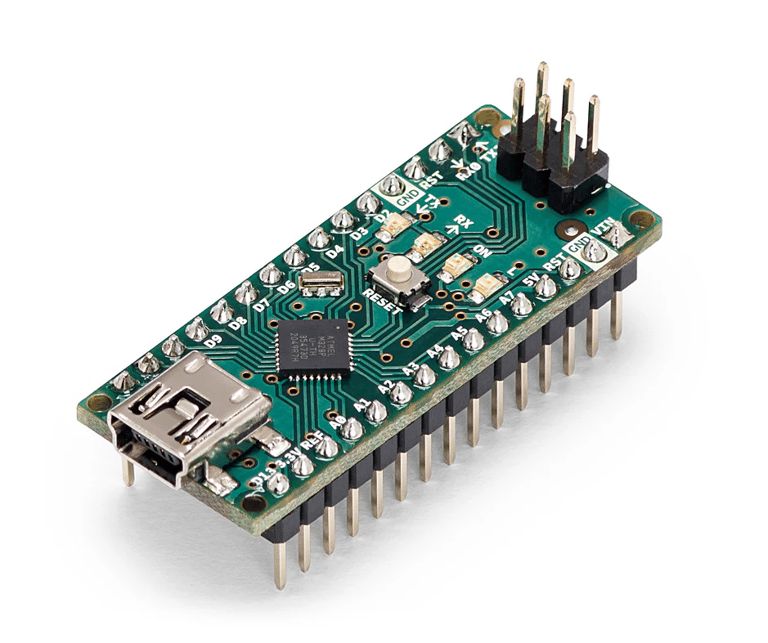

An Arduino Nano was selected as the core control unit. Its balance of small size, adequate I/O capabilities, and ease of programming make it perfectly suited for reading IR remote inputs and managing the state of the 4-channel relay to control the appliances.
The Mastermind!

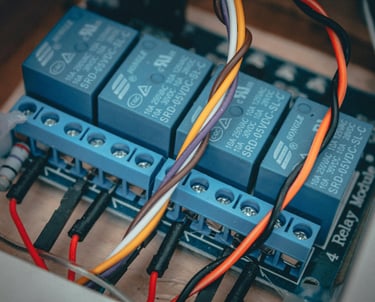

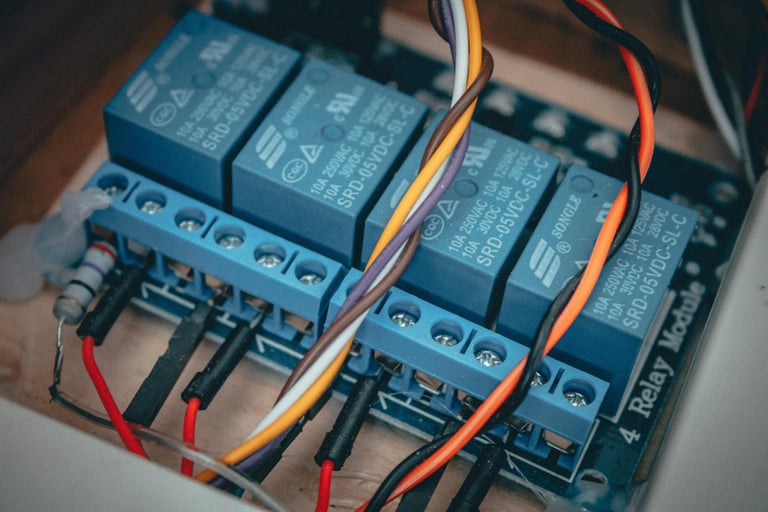

4 Channel 5V Relay Module
The Switchboard!
As 'The Muscle,' the 4-channel relay module is responsible for the heavy lifting. Each of its four channels is an electromechanical switch that, when activated by a signal from the Arduino, connects or disconnects the main power supply to an appliance, allowing for independent control of multiple devices.
Arduino Nano
Modules Used
How does it work?
Project Overview: IR Remote Controlled Appliance Management System
This project demonstrates a custom-engineered solution for convenient, centralized control of multiple electronic appliances within a room using a standard infrared (IR) remote. The system is built around an Arduino Nano, acting as the central processing unit 🧠 and a 4-channel relay module (dubbed 'The Muscle' 💪 for its power-switching capabilities).
Operational Workflow:
User Command Initiation: The process begins when the user presses a button on a standard handheld IR remote control. This action emits a unique, modulated infrared signal specific to that button.
Signal Reception and Conversion: An integrated IR receiver sensor module detects these incoming infrared pulses. The sensor then demodulates the IR signal, converting the complex light pattern into a clean digital electrical pulse train, ready for processing.
Signal Interpretation by Nano: This digital pulse train is fed to an input pin on the Arduino Nano. 'The Mastermind' is programmed to continuously monitor for these signals. Upon receiving a pulse train, the Arduino decodes it to identify the specific pattern corresponding to the button pressed on the remote. Each remote button has been pre-programmed within the Arduino sketch to correlate with a specific appliance or action.
Execution Command to 'The Muscle': Once 'The Mastermind' successfully decodes the IR signal and determines the intended command (e.g., "activate appliance on channel 1"), it sends a corresponding digital output signal to the designated channel on the 4-channel relay module.
Appliance Activation via Relay: 'The Muscle' (the relay module) functions as a set of four electrically isolated, high-power switches. When a channel on the relay is activated by the low-power signal from the Arduino, it physically completes or breaks the circuit connected to the mains power supply of an appliance. This allows the low-voltage Arduino to safely manage the higher voltage (e.g., 110V/230V AC) power flowing to devices such as lights, fans, or other electronics.
System Confirmation: The user observes the state change of the targeted appliance (e.g., a lamp illuminates 💡), confirming successful command execution.
Core Components and Their Functions:
IR Remote Control: Serves as the user interface for transmitting commands.
IR Receiver Sensor: Detects and demodulates infrared signals from the remote.
Arduino Nano ('The Mastermind'): The microcontroller responsible for reading sensor data, decoding IR signals, processing logic, and dispatching control signals to the relay.
4-Channel Relay Module ('The Muscle'): Acts as electrically operated switches, utilizing low-voltage signals from the Arduino to safely control high-voltage power to connected appliances.

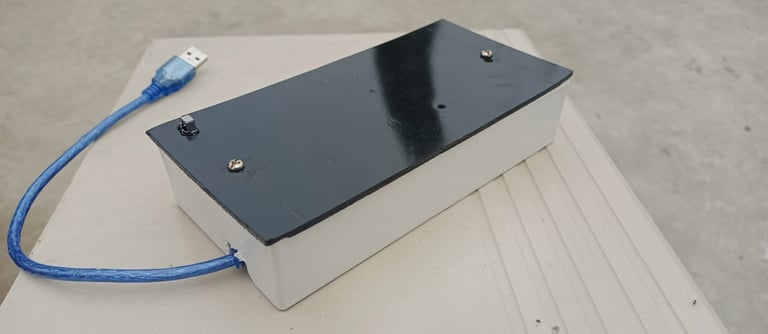

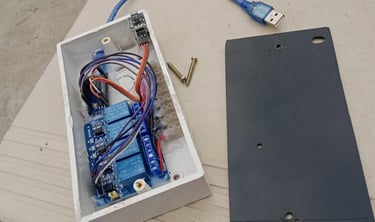

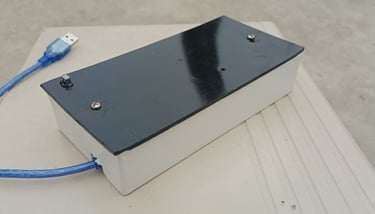

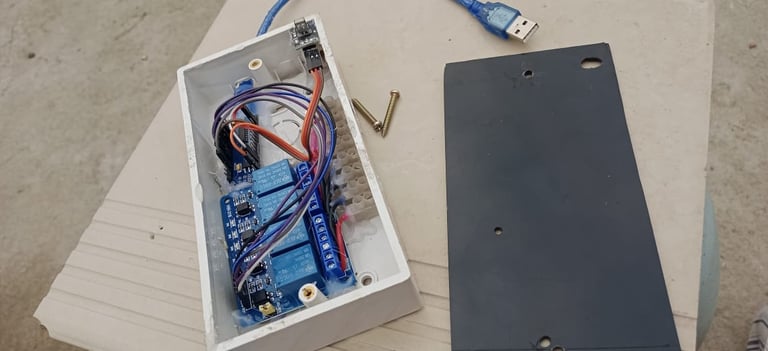

Project Enclosure: Houses all components, ensuring protection and a streamlined physical presentation.
Potential for Expansion:
This system provides a solid foundation for further development. By incorporating additional communication modules (e.g., Wi-Fi, Bluetooth), the control interface could be expanded to include mobile applications 📱, web-based dashboards 💻, or voice command integration 🗣️, paving the way for a more comprehensive smart automation solution.
